gridpack::math::BaseMatrixInterface< T, I > Class Template Reference

Abstract interface for matrix classes. More...

#include <matrix_interface.hpp>

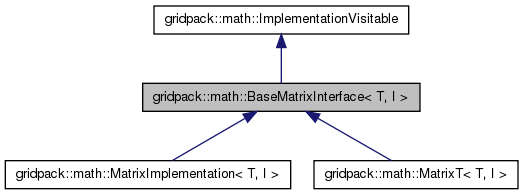

Inheritance diagram for gridpack::math::BaseMatrixInterface< T, I >:

[legend]

Collaboration diagram for gridpack::math::BaseMatrixInterface< T, I >:

[legend]

List of all members.

Public Types
typedef T	TheType
typedef I	IdxType
Public Member Functions
	BaseMatrixInterface (void)
	Default constructor.
	~BaseMatrixInterface (void)
	Destructor.
void	localRowRange (IdxType &lo, IdxType &hi) const
	Get the global index range of the locally owned rows.
IdxType	rows (void) const
	Get the total number of rows in this matrix.
IdxType	localRows (void) const
	Get the number of local rows in this matirx.
IdxType	cols (void) const
	Get the number of columns in this matrix.
IdxType	localCols (void) const
	Get the number of local columns in this matirx.
void	setElement (const IdxType &i, const IdxType &j, const TheType &x)
	Set an individual element.
void	setElements (const IdxType &n, const IdxType i, const IdxType j, const TheType *x)
	Set an several elements.
void	addElement (const IdxType &i, const IdxType &j, const TheType &x)
	Add to an individual element.
void	addElements (const IdxType &n, const IdxType i, const IdxType j, const TheType *x)
	Add to an several elements.
void	getElement (const IdxType &i, const IdxType &j, TheType &x) const
	Get an individual element.
void	getElements (const IdxType &n, const IdxType i, const IdxType j, TheType *x) const
	Get an several elements.
void	getRow (const IdxType &row, TheType *x) const
	Get a row and put it in a local array.
void	getRowBlock (const IdxType &nrow, const IdxType rows, TheType x) const
	Get some rows and put them in a local array.
void	identity (void)
	Make this matrix the identity matrix.
void	addDiagonal (const TheType &x)
	Shift the diagonal of this matrix by the specified value.
void	scale (const TheType &x)
	Scale this entire MatrixT by the given value.
void	real (void)
	Replace all elements with their real parts.
void	imaginary (void)
	Replace all elements with their imaginary parts.
void	conjugate (void)
	Replace all elements with their complex gradient.
double	norm2 (void) const
	Compute the matrix L² norm.
void	zero (void)
	Zero all entries in the matrix.
void	ready (void)
	Indicate the matrix is ready to use.
void	print (const char *filename=NULL) const
	Print to named file or standard output.
void	save (const char *filename) const
	Save, in MatLAB format, to named file (collective).
void	loadBinary (const char *filename)
	Load from a named file of whatever binary format the math library uses.
void	saveBinary (const char *filename) const
	Save to named file in whatever binary format the math library uses.

Detailed Description

template<typename T, typename I = int>
class gridpack::math::BaseMatrixInterface< T, I >

Abstract interface for matrix classes.

Member Typedef Documentation

template<typename T, typename I = int>

typedef I gridpack::math::BaseMatrixInterface< T, I >::IdxType

The size/index type used.

Reimplemented in gridpack::math::MatrixT< T, I >.

template<typename T, typename I = int>

typedef T gridpack::math::BaseMatrixInterface< T, I >::TheType

The numeric type used.

Reimplemented in gridpack::math::MatrixT< T, I >.

Constructor & Destructor Documentation

template<typename T, typename I = int>

gridpack::math::BaseMatrixInterface< T, I >::BaseMatrixInterface ( void )

Default constructor.

template<typename T, typename I = int>

gridpack::math::BaseMatrixInterface< T, I >::~BaseMatrixInterface ( void )

Destructor.

Member Function Documentation

template<typename T, typename I = int>

void gridpack::math::BaseMatrixInterface< T, I >::addDiagonal ( const TheType & x )

Shift the diagonal of this matrix by the specified value.

Collective.

Parameters:

x

template<typename T, typename I = int>

void gridpack::math::BaseMatrixInterface< T, I >::addElement	(	const IdxType &	i,
		const IdxType &	j,
		const TheType &	x
	)

Add to an individual element.

Local.

Parameters:

	i	global, 0-based row index
	j	global, 0-based column index
	x	value to add to matrix element

template<typename T, typename I = int>

void gridpack::math::BaseMatrixInterface< T, I >::addElements	(	const IdxType &	n,
		const IdxType *	i,
		const IdxType *	j,
		const TheType *	x
	)

Add to an several elements.

Local.

Parameters:

	n	number of elements to update
	i	array of `n` global, 0-based row indexes
	j	array of `n` global, 0-based column indexes
	x	array of `n` values to add to existing matrix elements

template<typename T, typename I = int>

IdxType gridpack::math::BaseMatrixInterface< T, I >::cols ( void ) const

Get the number of columns in this matrix.

Local.

Returns:: number of columns in matrix

template<typename T, typename I = int>

void gridpack::math::BaseMatrixInterface< T, I >::conjugate ( void )

Replace all elements with their complex gradient.

template<typename T, typename I = int>

void gridpack::math::BaseMatrixInterface< T, I >::getElement	(	const IdxType &	i,
		const IdxType &	j,
		TheType &	x
	)			const

Get an individual element.

Local.

Only local elements may be retrieved using this method.

Parameters:

	i	global, 0-based row index
	j	global, 0-based column index
	x	variable in which to place retrieved value

template<typename T, typename I = int>

void gridpack::math::BaseMatrixInterface< T, I >::getElements	(	const IdxType &	n,
		const IdxType *	i,
		const IdxType *	j,
		TheType *	x
	)			const

Get an several elements.

Local.

Only local elements may be retrieved using this method.

Parameters:

	n	number of elements to retrieve
	i	array of `n` global, 0-based row indexes
	j	array of `n` global, 0-based column indexes
	x	array of `n` values in which retrieved values are to be placed

template<typename T, typename I = int>

void gridpack::math::BaseMatrixInterface< T, I >::getRow	(	const IdxType &	row,
		TheType *	x
	)			const

Get a row and put it in a local array.

template<typename T, typename I = int>

void gridpack::math::BaseMatrixInterface< T, I >::getRowBlock	(	const IdxType &	nrow,
		const IdxType *	rows,
		TheType *	x
	)			const

Get some rows and put them in a local array.

(Collective)

This gets the elements in the specified rows and puts them in the specified array. It is assumed that the array is appropriately sized (nrow * columns). While this is collective, each processor may get a different set of rows. Row/column ownership should not matter.

Parameters:

	nrow
	rows
	x

template<typename T, typename I = int>

void gridpack::math::BaseMatrixInterface< T, I >::identity ( void )

Make this matrix the identity matrix.

Collective

template<typename T, typename I = int>

void gridpack::math::BaseMatrixInterface< T, I >::imaginary ( void )

Replace all elements with their imaginary parts.

template<typename T, typename I = int>

void gridpack::math::BaseMatrixInterface< T, I >::loadBinary ( const char * filename )

Load from a named file of whatever binary format the math library uses.

Collective.

The underlying math library generally supports some way to save a matrix to a file. This will load elements from a file of that format.

Parameters:

filename

template<typename T, typename I = int>

IdxType gridpack::math::BaseMatrixInterface< T, I >::localCols ( void ) const

Get the number of local columns in this matirx.

template<typename T, typename I = int>

void gridpack::math::BaseMatrixInterface< T, I >::localRowRange	(	IdxType &	lo,
		IdxType &	hi
	)			const

Get the global index range of the locally owned rows.

Local.

Parameters:

	lo	first (0-based) index of locally owned rows
	hi	one more than the last (0-based) index of locally owned rows

template<typename T, typename I = int>

IdxType gridpack::math::BaseMatrixInterface< T, I >::localRows ( void ) const

Get the number of local rows in this matirx.

Local.

Returns:: number of rows owned by this process

template<typename T, typename I = int>

double gridpack::math::BaseMatrixInterface< T, I >::norm2 ( void ) const

Compute the matrix L² norm.

Collective.

The vector L², or Euclidian, norm is computed as

$\left\| \mathbf{A} \right\| ~ = ~ \sqrt{\sum_{ij} A_{ij}^{2}}$

Returns:: L² norm of this matrix

template<typename T, typename I = int>

void gridpack::math::BaseMatrixInterface< T, I >::print ( const char * filename = NULL ) const

Print to named file or standard output.

Collective.

The format is dependent on the specific vector implementation.

Parameters:

filename

optional file

template<typename T, typename I = int>

void gridpack::math::BaseMatrixInterface< T, I >::ready ( void )

Indicate the matrix is ready to use.

Collective.

This is used to indicate that the matrix is ready to use. This must be called after all setElement() or addElement() calls and before the vector is used for any operation.

template<typename T, typename I = int>

void gridpack::math::BaseMatrixInterface< T, I >::real ( void )

Replace all elements with their real parts.

template<typename T, typename I = int>

IdxType gridpack::math::BaseMatrixInterface< T, I >::rows ( void ) const

Get the total number of rows in this matrix.

Local.

Returns:: total number of rows

template<typename T, typename I = int>

void gridpack::math::BaseMatrixInterface< T, I >::save ( const char * filename ) const

Save, in MatLAB format, to named file (collective).

Collective.

Parameters:

filename

template<typename T, typename I = int>

void gridpack::math::BaseMatrixInterface< T, I >::saveBinary ( const char * filename ) const

Save to named file in whatever binary format the math library uses.

Collective.

The underlying math library generally supports some way to save a matrix to a file. This routine uses whatever format that can be read by loadBinary().

Parameters:

filename

template<typename T, typename I = int>

void gridpack::math::BaseMatrixInterface< T, I >::scale ( const TheType & x )

Scale this entire MatrixT by the given value.

Collective.

Parameters:

x

factor by which all elements in the matrix are multiplied

template<typename T, typename I = int>

void gridpack::math::BaseMatrixInterface< T, I >::setElement	(	const IdxType &	i,
		const IdxType &	j,
		const TheType &	x
	)

Set an individual element.

Local.

This overwrites the value at the specified i row and j column. ready() must be called after all setElement() calls and before using the matrix.

Parameters:

	i	global (0-based) row index
	j	global (0-based) column index
	x	value to place in matrix

template<typename T, typename I = int>

void gridpack::math::BaseMatrixInterface< T, I >::setElements	(	const IdxType &	n,
		const IdxType *	i,
		const IdxType *	j,
		const TheType *	x
	)

Set an several elements.

Local.

This overwrites values at several locations in the matrix. ready() must be called after all setElements() calls and before using the matrix.

Parameters:

	n	number of values to place in
	i	array of `n` global, 0-based row indexes
	j	array of `n` global, 0-based column indexes
	x	array of `n` values to replace existing matrix elements

template<typename T, typename I = int>

void gridpack::math::BaseMatrixInterface< T, I >::zero ( void )

Zero all entries in the matrix.

Collective.

The documentation for this class was generated from the following file:

matrix_interface.hpp
